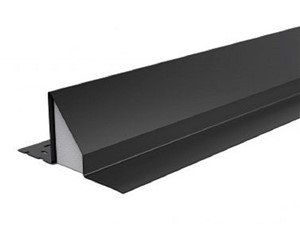

Catnic CG90 Cavity Wall Lintel - 1200mm

11276

Catnic CG90 Cavity Wall Lintel - 1200mmCatnic CG90 Cavity Wall Lintel - 1200mmCatnic CG90 Cavity Wall Lintel - 1200mmCatnic CG90 Cavity Wall Lintel - 1200mm
Catnic CG90 Cavity Wall Lintel - 1200mm
Catnic CG90 Cavity Wall Lintel - 1200mm
Catnic CG90 Cavity Wall Lintel - 1200mm

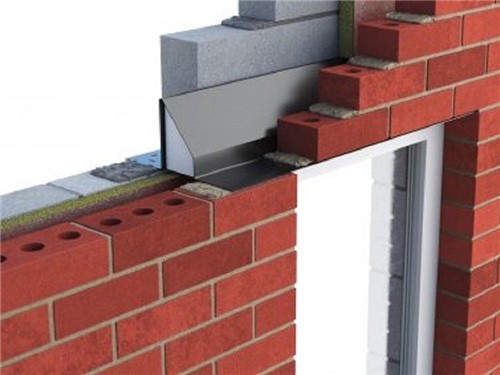

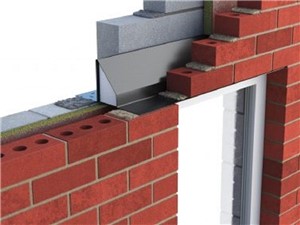

Catnic CG90/100 Cavity Wall Lintels are open back lintels. They allow masonry to be built up continuously on both outer and inner leaf. The CG range of Catnic Lintels are formed from galvanised steel, then powder coated. Duplex corrosion protection ensures optimum durability and longevity. With a Built in DPC on the 1650 to 3600mm length lintels, this saves time in construction and means cavity is easy to clean without risk of damage to DPC. This lintel features continuous insulation meaning it maximises thermal efficiency and minimises cold bridging.

£83.29

Each

Catnic CG90 Cavity Wall Lintel - 1200mm

  • Length: 1200mm
  • Suitable for Standard Duty loading applications

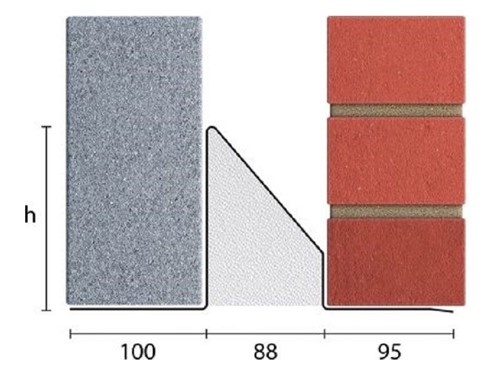

  • For Interior 90 to 105mm Cavity Walls
  • 100 to 115mm Inner Leaf Lintel
  • Nominal Height of 90mm
  • Safe Working Load: 15kN
  • Built in Plaster Key
  • Cougar open back
  • Duplex Corrosion Protection
  • Catnic

  • CG90/1001200
